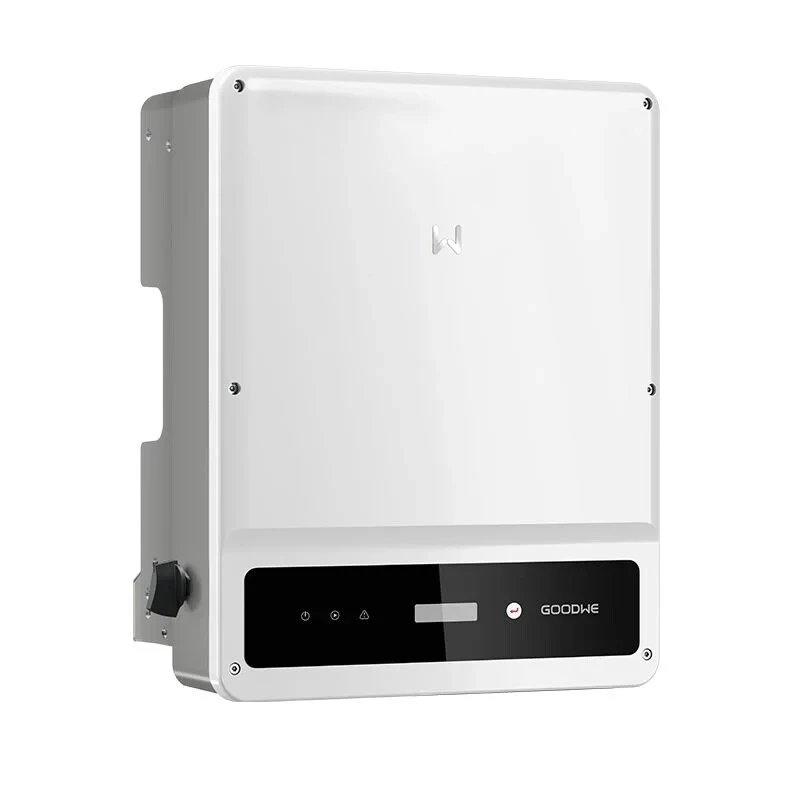

Goodwe GW-15K-STD-20
Goodwe GW-15K-STD-20
A perfect fit for three-phase residential and small commercial systems with high-power PV modules, the SDT G2 PLUS+ inverters allow for high current input up to 16A. The smaller inverters are designed for silent operation, the optional Type ll surge protection on both AC and DC sides enhances overall safety. Smart energy management -including 24-hour load consumption monitoring - can be facilitated by adding the GoodWe HomeKit 3000.
CONTACT US
MESSAGE

DataGW-4000-STD-20GW-5000-STD-20GW-6000-STD-20GW-8000-STD-20GW-20K-STD-20GW-10K-STD-20GW-12K-STD-20GW-15K-STD-20GW-17K-STD-20GW-20K-STD-20
Operating Temperature Range (°C)-30- +60
Relative Humidity0-100%
Max. Operating Altitude (m)4000
Cooling MethodNatural ConvectionSmart Fan Cooling
User InterfaceLED,LCD,WLAN+APP
CommunicationWiFi, RS485 or LAN or 4G(Optional)
Weight(kg)15151520.520.523.526262626
Dimension(W/H/Dmm)354*433*147415*511*175514*511*198
Typical Noise Emission(dB)<34<34<34<25<25<50<50<50<50<50
TopologyNon-isolated
Self-consumption at Night(W)<1
Ingress Protection RatingIP65
DC ConnectorMC4(4-6mm²)
AC ConnectorPlug and play connectorOT Terminal
