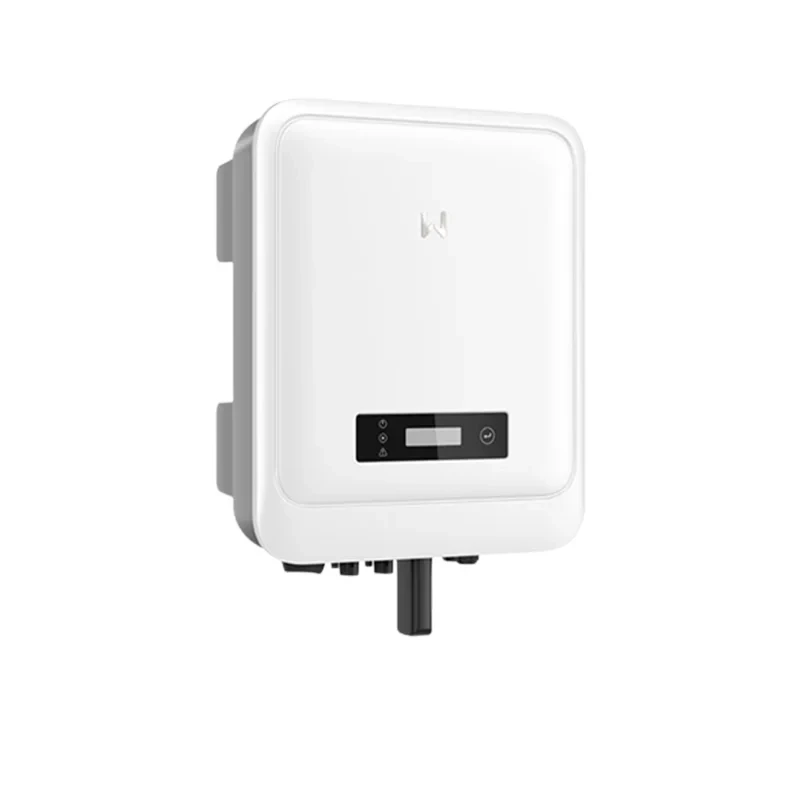

Goodwe GW-5000-DNS-30
Goodwe GW-5000-DNS-30
The GoodWe DNS G3 Series inverter is specially designed for single-phase residential applications. Integrated with high-current input and DC input oversizing capabilities, the series can bring you optimized power generation and make substantial returns. With its lighter and fanless house fit-in compact design, the DNS G3 inverter provides a reliable power supply yet runs at a super quiet operation below 25dB.The inverter also takes safety measures including optional Arc Fault Failure Interrupter (AFCl) and Type ll Surge Protection Device (SPD) on both sides to protect the system from electrical fire and lightning hazards in extreme environments for guaranteed safety.
CONTACT US
MESSAGE

DataGW-3000-DNS-30GW-3600-DNS-30GW-4200-DNS-30GW-5000-DNS-30GW-6000-DNS-30
Operating Temperature Range (°C)-25- +60
Relative Humidity0-100%
Max. Operating Altitude (m)4000
Cooling MethodNatural Convection
User InterfaceLED,LCD(Optional),WLAN+APP
CommunicationWiFi, RS485 or LAN or 4G or DI (Optional)
Communication ProtocolsModbus-RTU(SunSpec Compliant)
Weight(kg)12.812.812.812.813.4
Dimension(W/H/Dmm)350*410*143
Typical Noise Emission(dB)<25<25<25<25<25
TopologyNon-isolated
Self-consumption at Night(W)<1
Ingress Protection RatingIP66
DC ConnectorMC4(4-6mm²)
AC ConnectorPlug and play connector(Max. 6mm²)
