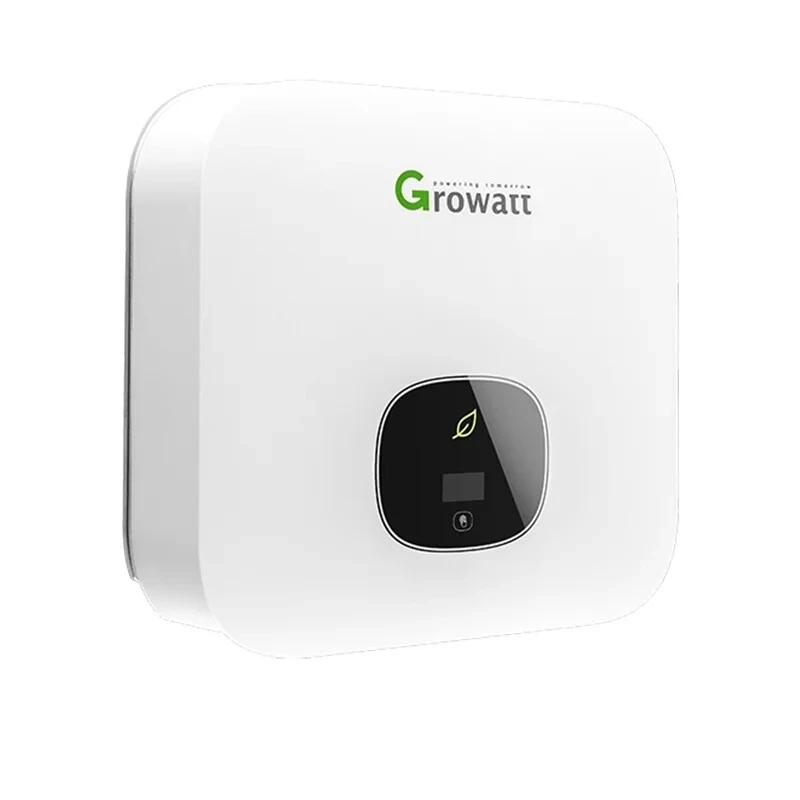

Growatt MIN5000TL-X
Growatt MIN5000TL-X
Maximum efficiency 98.4%
Dual MPP trackers
Type ll SPD on DC side
Supports export control
Touch key and OLED display
Data storage up to 25 years
CONTACT US
MESSAGE

DATEMIN 3600TL-XMIN 4200TL-XMIN 4600TL-XMIN 5000TL-XMIN 6000TL-X
Dimensions(W/H/D)375/350/160mm
Weight10.8kg10.8kg10.8kg10.8kg10.8kg
Operating temperature range-25℃…+60℃
Noise emission(typical)≤35 Db(A)
Nighttime power consumption<1W
TopologyTransformerless
CoolingNatural convection
Protection degreeIP65
Relative humidity0-100%
Altitude4000m
DC connectionH4/MC4(Optional)
AC connectionConnector
DisplayOLED+LED/WIFI+APP
Interfaces: RS485 / USB /WIFI/ GPRS / RF/ LANYes/Yes/Optional/Optional/Optional/optional
Warranty: 5 years/ 10 yearsYes/Optional
