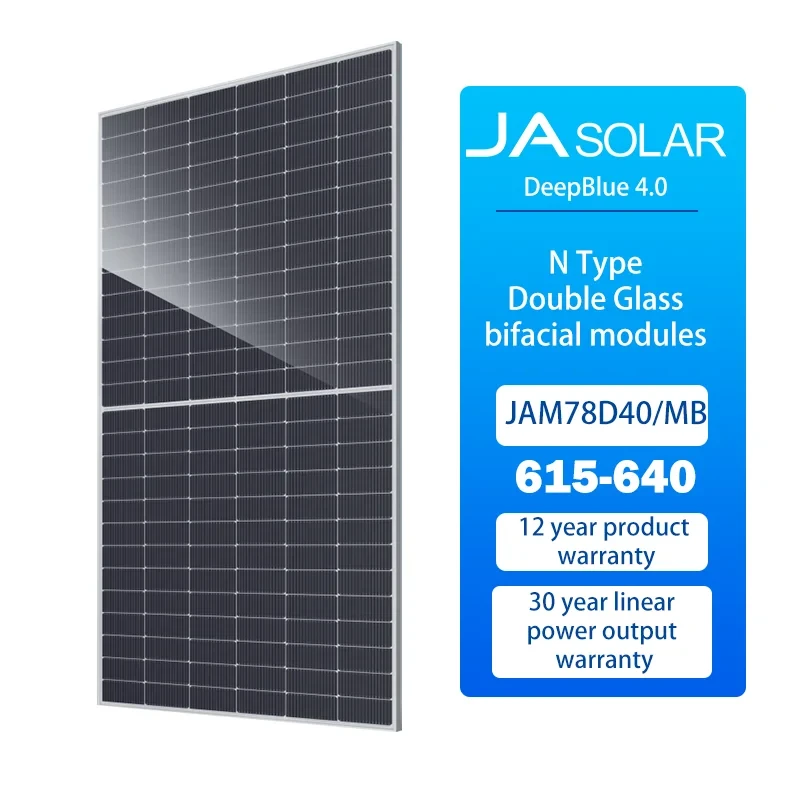

JA Solar JAM78D40MB
JA Solar JAM78D40MB
615W 620W 625W 630W 635W 640W JA Deepblue 4.0 Series n Type Double Glass Bifacial Modules, with higher power generation better LCOE, better temperature coefficient, lower LID and better low irradiance response.


CONTACT US
MESSAGE
MECHANICAL DATA
CellMono
Weight34.6kg
Dimensions2465±2mm*1134±2mm*35±1mm
Cable Cross Section Size4mm²(IEC)，12 AWG(UL)
No. of cells156(6*26)
J-BoxIP68, 3 diodes
ConnectorQC 4.10-351/ MC4-EVO2A


ELECTRICAL DATE(STC)
Rated Maximum Power(Pmax)[W]615620625630635640
Power Tolerance0~+3%
Open Circuit Voltage(Voc) [V]55.7955.9956.1856.3856.5756.76
Maximum Power Voltage(Vmp) [V]47.2447.4347.6147.847.9848.16
Short Circuit Current(lsc) [A]13.6913.7413.7913.8413.8913.94
Maximum Power Current(lmp) [A]13.0213.0713.1313.1813.2313.29
Module Efficiency[%]22.00%22.20%22.40%22.50%22.70%22.90%
