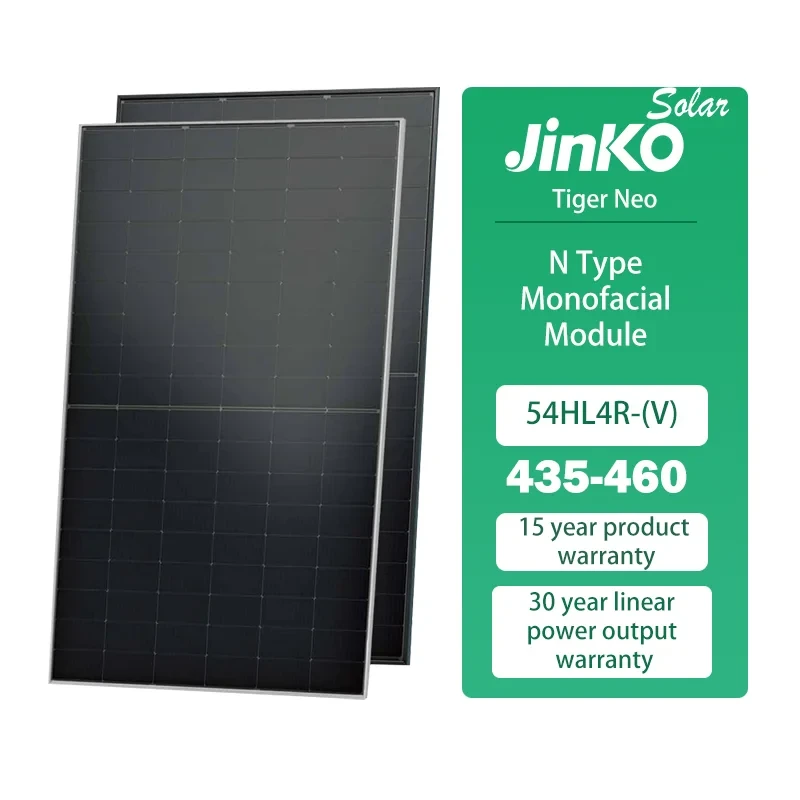

Jinko Tiger Neo 54HL4R-(V)
Jinko Tiger Neo 54HL4R-(V)
Model NO:54HL4R-(V) 435-460 Watt
Cell Type: N-type Mono-crystalline
Weight:21.0 kg
Transport Package:Wooden Pallet and Carton Packing
Specification:1762*1134*30mm
Trademark:Jinko solar
Origin:China
CONTACT US
MESSAGE


MECHANICAL DATA
Cell Type N-type Mono-crystalline
No. of Cells108(2*54)
Dimensions1762*1134*30 mm
Weight21.0 kg
Front Glass3.2mm, Anti-reflection Coating, High Transmission, Low Iron, Tempered Glass
FrameAnodized aluminium alloy
J-BoxIP68 rated
Protection ClassClass II
lEC Fire TypeClass C
Output Cables4.0 mm²(+): 400 mm, (-): 200 mm or Customized Length

ELECTRICAL DATE(STC)
Nominal Max. Power (Pmax)435w440w445w450w455w460w
Power Tolerance0- +3%
Opt. Operating Voltage (Vmp)32.5932.8133.0233.2133.4133.6
Opt. Operating Current (Imp)13.3513.4113.4813.5513.6213.69
Open Circuit Voltage (Voc)39.1639.3839.5939.7839.9840.17
Short Circuit Current (Isc)13.813.8613.931414.0714.14
Module Efficiency21.77%22.02%22.27%22.52%22.77%23.02%
