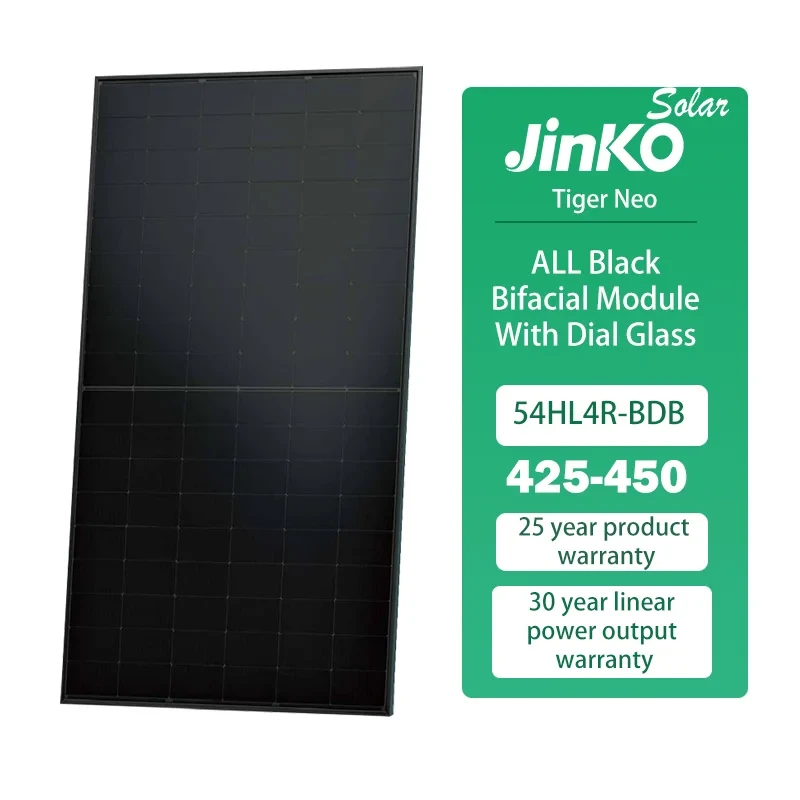

Jinko Tiger Neo 54HL4R-BDB
Jinko Tiger Neo 54HL4R-BDB
Model NO:54HL4R-BDB 425-450 Watt
Cell Type: N-type Mono-crystalline
Weight:24.5 kg
Transport Package:Wooden Pallet and Carton Packing
Specification:1762*1134*30mm
Trademark:Jinko solar
Origin:China
CONTACT US
MESSAGE


MECHANICAL DATA
Cell Type N-type Mono-crystalline
No. of Cells108(2*54)
Dimensions1762*1134*30 mm
Weight24.5 kg
Front Glass2.0mm, Anti-reflection Coating
Back Glass2.0mm, Heat Strengthened Glass
FrameAnodized aluminium alloy
J-BoxIP68 rated
Protection ClassClass II
lEC Fire TypeClass C
Output Cables4.0 mm²(+): 400 mm, (-): 200 mm or Customized Length

ELECTRICAL DATE(STC)
Nominal Max. Power (Pmax)425w430w435w440w445w450w
Power Tolerance0- +3%
Opt. Operating Voltage (Vmp)32.933.0833.2633.4433.6133.79
Opt. Operating Current (Imp)12.921313.0813.1613.2413.32
Open Circuit Voltage (Voc)39.2339.4339.6339.8340.0340.23
Short Circuit Current (Isc)13.7713.8413.9113.9814.0514.12
Module Efficiency21.27%21.52%21.77%22.02%22.27%22.52%
