Canadian Solar

Practical renewable energy technology thatreduces costs and helps the environment

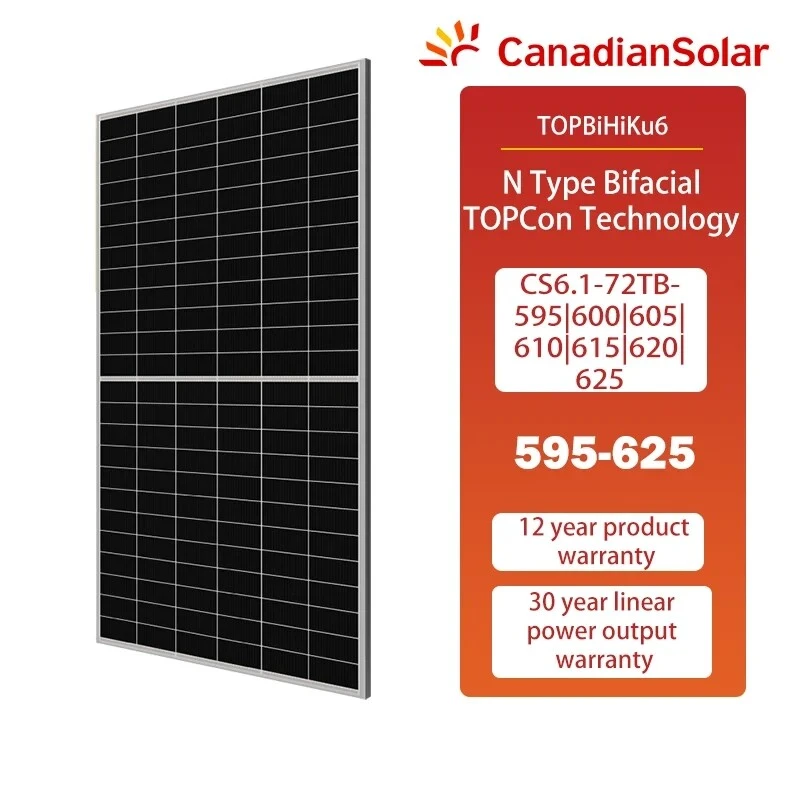

Canadian Solar TOPBiHiKu6 590-620w
Canadian Solar TOPBiHiKu6 590-620w
Model NO: TOPBiHiKu6 590-620W
Cell Type: TOPCon cells
Weight:33.6 kg (74.1 lbs)
Cables:4.0 mm² (IEC), 12 AWG (UL)
Transport Package:Wooden Pallet and Carton Packing
Specification:2382*1134*30mm
Trademark:Canadian solar
Origin:China
CONTACT US
MESSAGE


MECHANICAL DATA
Cell Type TOPCon cells
Cell Arrangement144 [ 2*(12*6) ]
Dimensions2382*1134*30 mm (93.8*44.6*1.18 in)
Weight33.6 kg (74.1 lbs)
Front Glass2.0 mm heat strengthened glass with anti-reflective coating
Back Glass2.0 mm heat strengthened glass
FrameAnodized aluminium alloy
J-BoxIP68,3 bypass diodes
Cable4.0 mm² (IEC), 12 AWG (UL)
ConnectorT6 or MC4-EVO2 or MC4-EVO2A
Per Pallet36 pieces
Per Cotainer(40' HQ)72 pieces

ELECTRICAL DATE(STC)
Nominal Max. Power (Pmax)590w595w600w605w610w615w620w
Power Tolerance0-10 w
Opt. Operating Voltage (Vmp)43.6 V43.8 V44.0 V44.2 V44.4 V44.6 V44.8 V
Opt. Operating Current (Imp)13.54 A13.59 A13.64 A13.69 A13.74 A13.79 A13.84 A
Open Circuit Voltage (Voc)51.4 V51.6 V51.8 V52.0 V52.2 V52.4 V52.6 V
Short Circuit Current (Isc)14.42 A14.48 A14.54 A14.60 A14.66 A14.72 A14.78 A
Module Efficiency21.80%22.00%22.20%22.40%22.60%22.80%23.00%
