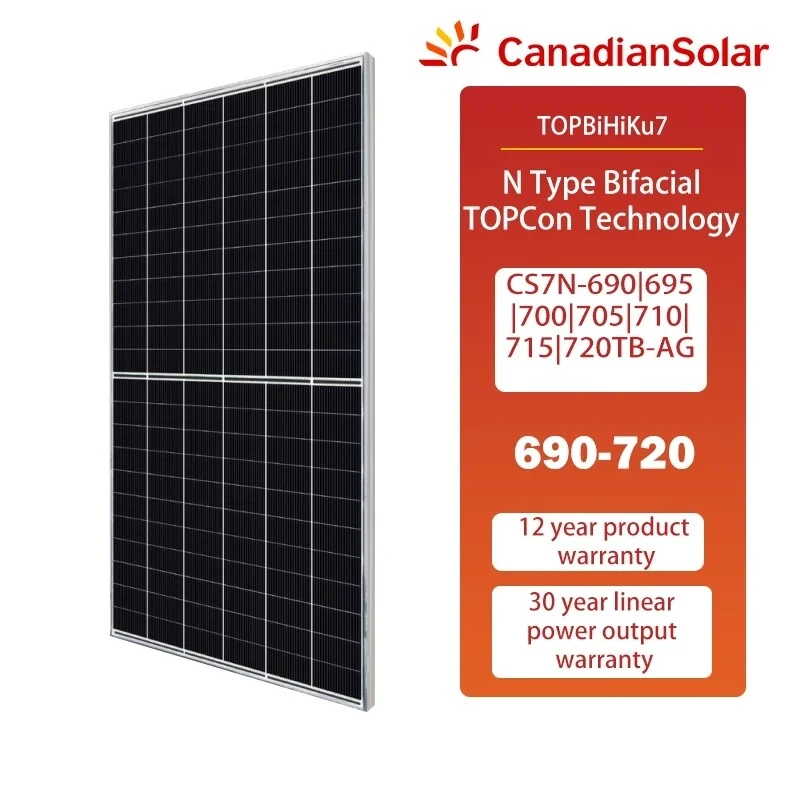

Canadian Solar TOPBiHiKu7 685-715w
Canadian Solar TOPBiHiKu7 685-715w
Model NO: TOPBiHiKu7 685-715W
Cell Type: TOPCon cells
Weight:37.8 kg (83.3 lbs)
Cables:4.0 mm² (IEC), 12 AWG (UL)
Transport Package:Wooden Pallet and Carton Packing
Specification:2384*1303*33mm
Trademark:Canadian solar
Origin:China
CONTACT US
MESSAGE


MECHANICAL DATA
Cell Type TOPCon cells
Cell Arrangement132 [ 2*(11*6) ]
Dimensions2384*1303*33 mm (93.9*51.3*1.30 in)
Weight37.8 kg (83.3 lbs)
Front Glass2.0 mm heat strengthened glass with anti-reflective coating
Back Glass2.0 mm heat strengthened glass
FrameAnodized aluminium alloy
J-BoxIP68,3 bypass diodes
Cable4.0 mm² (IEC), 12 AWG (UL)
ConnectorT6 or MC4-EVO2 or MC4-EVO2A
Per Pallet33 pieces
Per Cotainer(40' HQ)594 pieces or 495 pieces

ELECTRICAL DATE(STC)
Nominal Max. Power (Pmax)685w690w695w700w705w710w715w
Power Tolerance0-10 w
Opt. Operating Voltage (Vmp)39.4 V39.6 V39.8 V40.0 V40.2 V40.4 V40.6 V
Opt. Operating Current (Imp)17.39 A17.43 A17.47 A17.51 A17.55 A17.59 A17.63 A
Open Circuit Voltage (Voc)47.3 V47.5 V47.7 V47.9 V48.1 V48.3 V48.5 V
Short Circuit Current (Isc)18.34 A18.39 A18.44 A18.49 A 18.54 A18.59 A18.64 A
Module Efficiency22.10%22.20%22.40%22.50%22.70%22.90%23.00%
